Process for making new windows

Process for making new windows for my 1090,
from the correct 12mm Perspex material.

1 ) Drawings :

I have made the drawings, and I have the machinery to make these pieces.

Here are the CAD files : just click on the picture to get and download the CAD file :

frontpanel2 170 frontwindow2 170 sidewindow v3 170 windowtrims side 170

The correct procedure is applied to make the curve on the front windows etc.

2 ) Materials :

Because the material is to be purchased in large piece (2m x 3m) I have material to make some extra windows. If other owners of Feeling 1090 needs one or all window, I can make from the extra material, for a price much less than the commercial price ... you can choose if it is made with or without the holes.

If there is any interest in this, please let me know ...

3) Removing old windows :

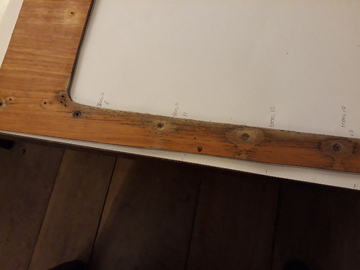

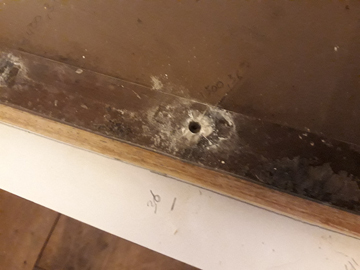

An interesting point ... when removing the window, I used a knife to cut the adhesive ... I was expecting the knife to stop where there is the screws, but in most cases, it did not stopped ... it passed though ... the reality is the screws had completely corroded. Nothing remained of the screw inside the window, just a white dust ...

4) Process:

The process has started ... the plastic and wood is all being replaced.

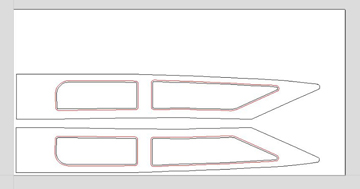

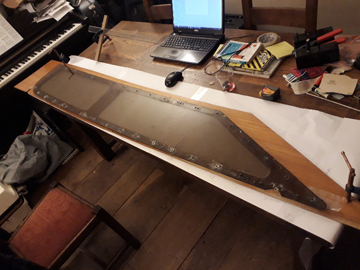

20190114 01073920190114 01075120190114 01083220190114 010837WindowTrim

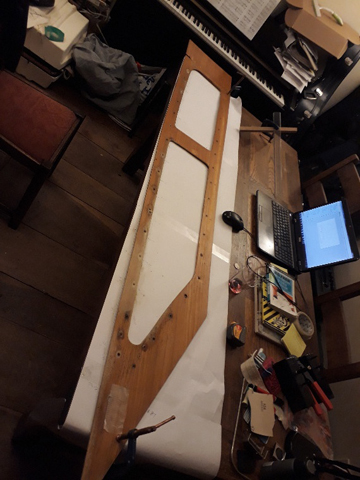

The port lining is made, routed on the CNC, veneered in European Elm ... looks good.

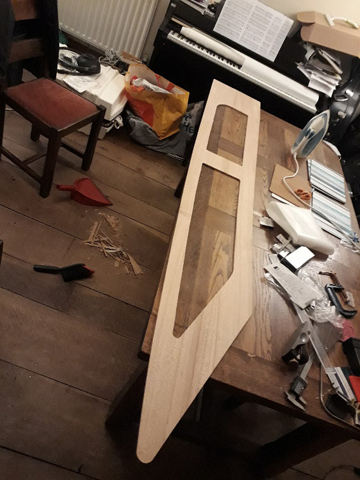

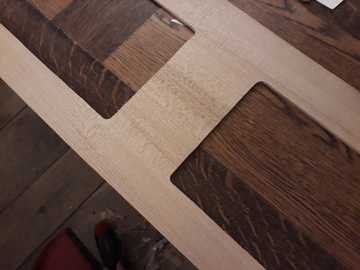

20190114 21345620190114 213501

For the side, it is easy ... 10mm plexiglass, no problem. I would think to make only in one piece ... if manufactured in 2 pieces, it is another place for the water to enter.

I do not put holes in mine, I seal direct, with Sikaflex 295 UV.

For the front, it is difficult ... 12mm plexiglass, it is bent or formed with heat ... a form has to be made for the exact shape, and the plexiglass heated in an oven.

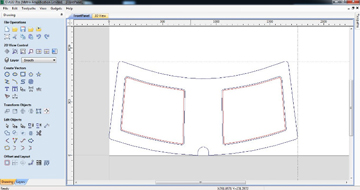

The final panel is drawn ... this completes all the measurment, next is the fabrication.

FrontPanel

The first pieces of the lining are replaced ... the colour difference is amazing. When you compare the new white to the old white ... it had become brown with years. The light is not good in these photos, the result is better than it looks in the image.

Soon we start positioning the new woodwork.

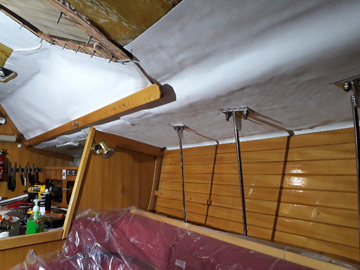

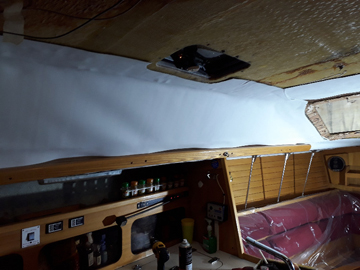

20190126 17392720190126 182812

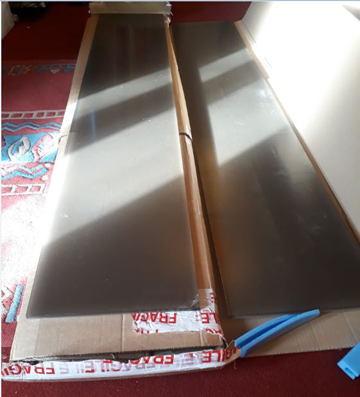

The new Perspex arrives ...

NewPerspex

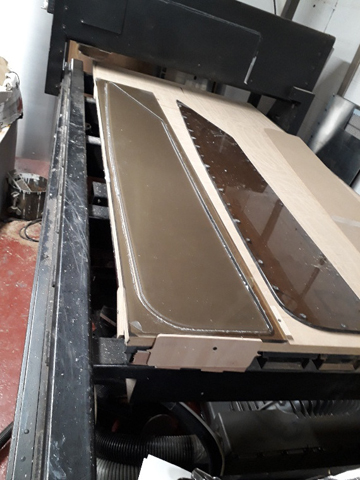

And, the windows are cut ... now I have to put the front window in an oven to make the correct shape ...

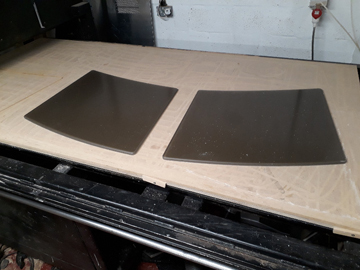

20190129 18225920190129 23204720190129 233411

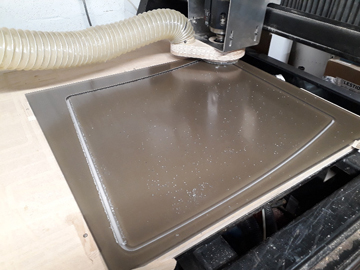

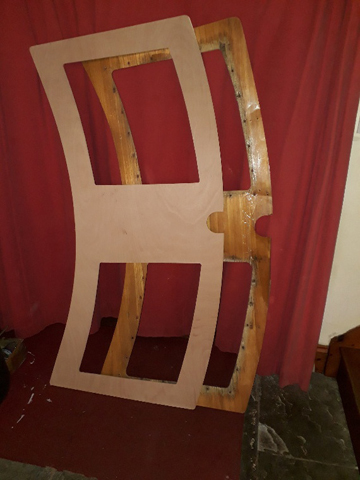

All the wood is cut on my CNC router ... it is much easier than cutting by hand. If you need the drawing, let me know.

20190203 0226251

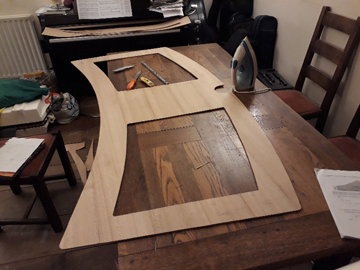

The final piece is veneered, I put some photos of the process.

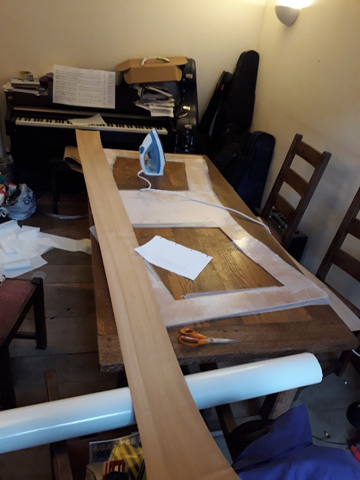

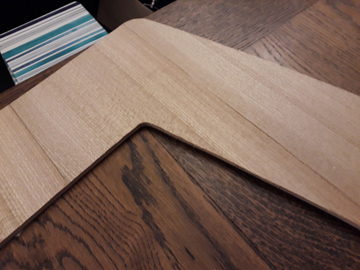

20190203 15123120190203 15142820190203 15195620190203 15284920190203 18593720190203 185953

The first coat of varnish is applied ...

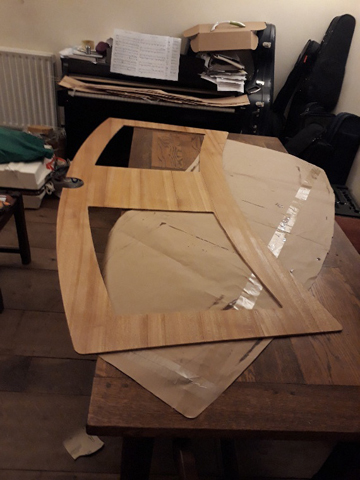

20190203 210429

And, the first panel was replaced !

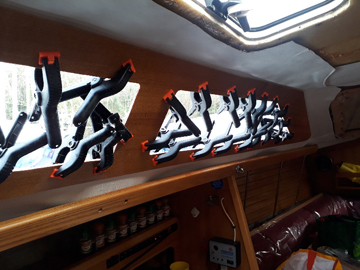

Some hours with clamps and epoxy ... and some work with the router, but now it is ready to receive the Perspex on the outside.

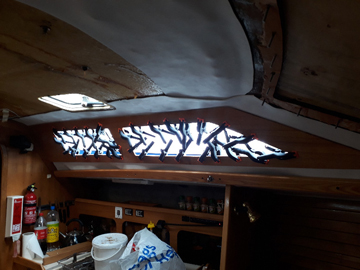

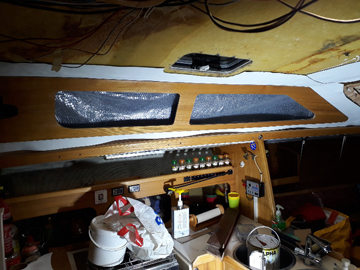

20190208 14174820190208 14180420190208 19085720190208 193941

And the first window is complete !

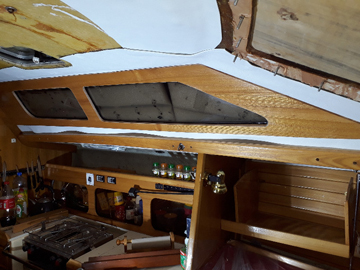

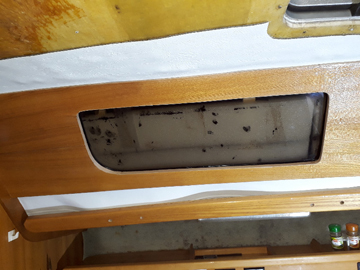

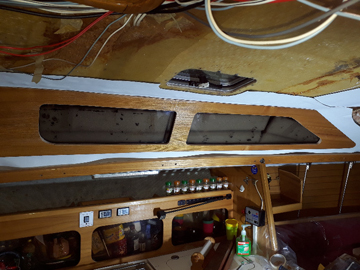

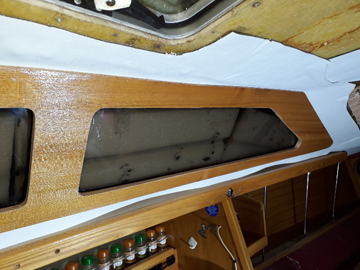

20190216 20131020190216 20134120190216 20132520190216 201259

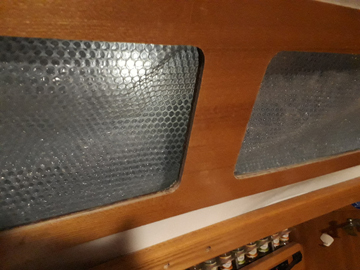

From outside, with the clean form it looks very nice. No screw holes is a big improvement I think.



5 ) Materials and addresses :

I got the veneer from here :

www.capitalcrispin.com/item.php?id=TLmuoM4hzF

It is "European Elm, Straight Cut" ... the pieces are ~ 3m x 0.2m

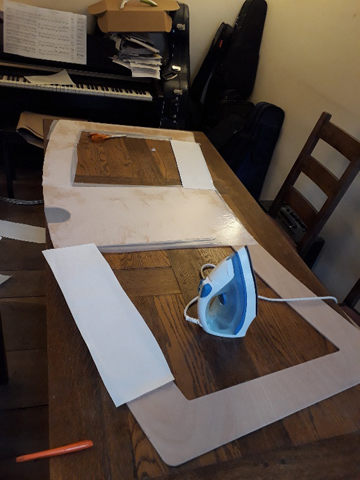

The glue is iron on. It is a sheet. The technique is first you place the sheet on the plywood and lightly fix with the iron. Then, remove the paper. Place the veneer on the glue, make the arrangement and finally press with the iron. Use some clean paper so the iron does not mark the veneer.

The glue sheet is here :

www.woodveneer4u.co.uk/WoodVeneerAdhesives.html

The plywood is good quality hardwood ply. It is not expensive "marine ply" because it should not be in the water (I hope!).

We used Sikaflex 295UV with Sika 209D primer. 2 windows are now installed, next is the front window, which I need to heat in the oven ...

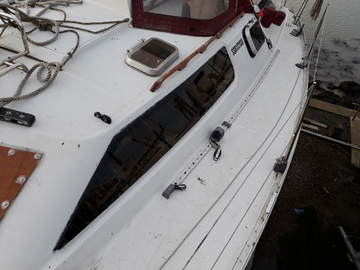

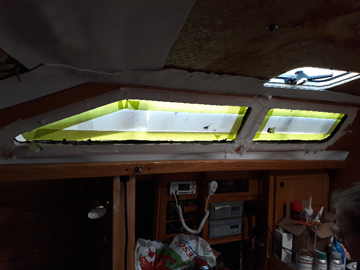

20190224 17235320190224 172226
